SHERIFF Aluminum
The Sheriff is available Exclusively at MEC.
We couldn’t have said it better ourselves:
Snow overnight? Thick mud? Assorted muck? A fat bike lays down the law when conditions get totally unruly. The mega-wide wheelset powers through deep, sloppy conditions and the aluminum frame has a beefed-up rear triangle for added stiffness even under big touring or commuting loads. On technical trails, the carbon fibre fork provides a nice degree of flex and the 11-speed SRAM gruppo offers a wide-ranging gear ratio for mountain-goating snowy climbs and hammering through the mud pit at the bottom. Reliable hydraulic discs yield solid stopping power and stability, while the massive Avalanche tires float over squishy ground.
- 6061 aluminum frame is lightweight and tough.
- Fork spacing is 150mm, rear frame spacing is 190mm.
- Carbon fiber fork absorbs vibrations and brings the weight down.
- 1 x 11 SRAM NX drivetrain is used for smooth shifting and reliability.
- Race Face Aeffect crank with a 28T narrow-wide ring prevents the chain from coming off.
- WTB Volt Comp saddle combines comfort and durability.
- SRAM Level T hydraulic disc brakes provide solid all-weather stopping power.
- Monster-sized Vee Avalanche tires track through deepness.
- Sealed KT hubs survive the grime and grit of winter.
1×11 Carbon Fork
- Frame: FAT Bike Custom AL6061
- Fork: RSD Custom 490mm Carbon w/15x150mm Axle
- Headset: FSA Orbit 44mm
- Handle Bar: Race Face Aeffect 35mm 760mm
- Stem: Race Face Aeffect 35mm 70mm
- Grips: Race Face Half Nelson
- Front Wheel: Single wall Fat 26x80mm Front 15x150mm
- Rear Wheel: Single wall Fat 26x80mm Rear 190mm QR
- Crank: Race Face 175mm Afflect DM
- Chain Ring: Race Face 28T NW Ring
- BB: Race Face 100mm BSA
- Chain: KMC 11SL
- Cassette: SRAM PG-1130 11/42T 11spd
- Rear Shifter: SRAM NX 11spd
- Rear Derailleur: SRAM NX Type 2 11spd
- Brakes: Avid Level T Hydraulic
- Rotors: Avid 180mm CleanSweep
- Saddle: WTB Volt Comp
- Seat Post: Race Face Ride 30.9mm
- Tires: Vee Rubber Avalanche 4.8
Frame Weight (M): 5 Lbs 3 oz
Sizes: Sm, Med, Lrg & Xlrg
Finish: Semi Matte Turquoise
Pricing:
Complete: $1975.00 CAD
All prices are Minimum Suggested Retail
1×11 Bluto Fork
- Frame: FAT Bike Custom AL6061
- Fork: Rockshox Bluto 100mm
- Headset: FSA Orbit 44mm
- Handle Bar: Race Face Aeffect 35mm 760mm
- Stem: Race Face Aeffect 35mm 70mm
- Grips: Race Face Half Nelson
- Front Wheel: Single wall Fat 26x80mm Front 15x150mm
- Rear Wheel: Single wall Fat 26x80mm Rear 190mm QR
- Crank: Race Face 175mm Afflect DM
- Chain Ring: Race Face 28T NW Ring
- BB: Race Face 100mm BSA
- Chain: KMC 11SL
- Cassette: SRAM PG-1130 11/42T 11spd
- Rear Shifter: SRAM NX 11spd
- Rear Derailleur: SRAM NX Type 2 11spd
- Brakes: Avid Level T Hydraulic
- Rotors: Avid 180mm CleanSweep
- Saddle: WTB Volt Comp
- Seat Post: Race Face Ride 30.9mm
- Tires: Vee Rubber Avalanche 4.8
Frame Weight (M): 5 Lbs 3 oz
Sizes: Sm, Med, Lrg & Xlrg
Finish: Semi Matte Red
Pricing:
Complete: $2500.00 CAD
All prices are Minimum Suggested Retail
Frame Specs
- Handmade Frame: Aluminum 6061 Double Butted and Heat Treated
- Forged Drop-Out: Aluminum 7000 Series
- CNC Machined Head Tube: 44mm
- CNC Machined Bottom Bracket Shell: 100mm BSA
- Hardware: Stainless Steel
- Fork Length: 490mm (100mm)
- Rear Spacing: 190mm
- Drop-Out: Quick Release
- Seat Post Clamp: 34.9mm
- Seat Post: 30.9mm
- Max Tire Size: 4.8in
- Max Fork Length: 510mm Axle to Crown (120mm Travel)

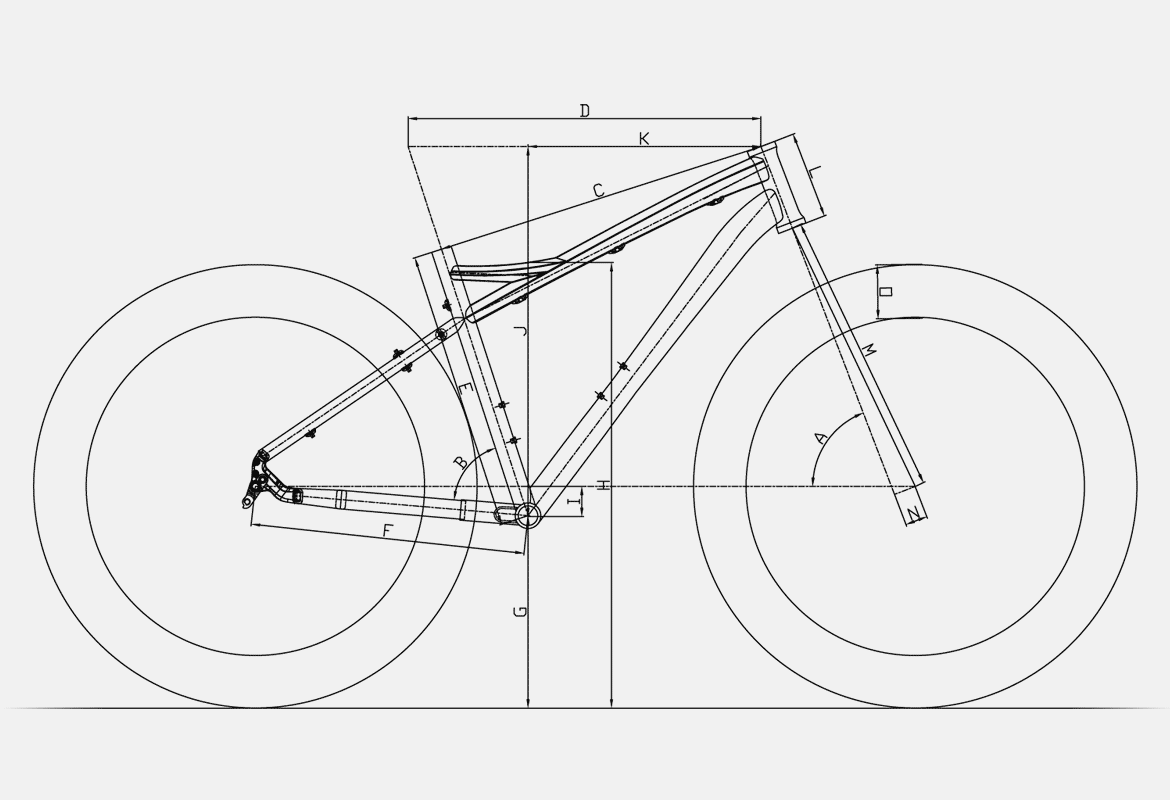

Fat Bike | Spec | Small | Medium | Large | XL |
HT Angle | A | 69° | 69° | 69° | 69° |
ST Angle | B | 72° | 72° | 72° | 72° |
Actual TT | C | 550 | 585 | 600 | 620 |
Effective TT | D | 578 | 614 | 630 | 651 |
Seat Tube | E | 450 | 470 | 490 | 490 |
Chainstay | F | 470 | 470 | 470 | 470 |
BB Height | G | 330 | 330 | 330 | 330 |
Standover Height | H | 728 | 729 | 731 | 731 |
BB Drop (mm) | I | -50 | -50 | -50 | -50 |
Stack | J | 604 | 614 | 623 | 623 |
Reach | K | 382 | 415 | 427 | 448 |
Head Tube (mm) | L | 120 | 130 | 140 | 140 |
Fork length (mm) | M | 490 (100 Travel) | 490 (100 Travel) | 490 (100 Travel) | 490 (100 Travel) |
Fork Offset (mm) | N | 51 | 51 | 51 | 51 |
Tire Size (in) | O | 4.80 | 4.80 | 4.80 | 4.80 |
Wheelbase (mm) | 1102 | 1139 | 1156 | 1178 | |
Rider (cm) | 160 - 172.5 | 172.5 - 180 | 177.5 - 188 | 185 - 195.5 |
Fat Bike | Spec | Small | Medium | Large | XL |
HT Angle | A | 69° | 69° | 69° | 69° |
ST Angle | B | 72° | 72° | 72° | 72° |
Actual TT | C | 21.65 | 23.03 | 23.62 | 24.41 |
Effective TT | D | 22.76 | 24.17 | 24.80 | 25.63 |
Seat Tube | E | 17.72 | 18.50 | 19.29 | 19.29 |
Chainstay | F | 18.50 | 18.50 | 18.50 | 18.50 |
BB Height | G | 12.99 | 12.99 | 12.99 | 12.99 |
Standover Height | H | 28.86 | 28.70 | 28.78 | 28.78 |
BB Drop (mm) | I | -50 | -50 | -50 | -50 |
Stack | J | 23.78 | 24.17 | 24.61 | 24.61 |
Reach | K | 15.04 | 16.34 | 16.81 | 17.84 |
Head Tube (mm) | L | 120 | 130 | 140 | 140 |
Fork length (mm) | M | 490 (100 Travel) | 490 (100 Travel) | 490 (100 Travel) | 490 (100 Travel) |
Fork Offset (mm) | N | 51 | 51 | 51 | 51 |
Tire Size (in) | O | 4.80 | 4.80 | 4.80 | 4.80 |
Wheelbase (in) | 43.39 | 44.84 | 45.51 | 46.31 | |
Rider (ft/in) | 5'3 - 5'8 | 5'8 - 5'11' | 5'10 - 6'2 | 6'1 - 6'5 |
