Sergeant V3 Aluminum

Mountain bike

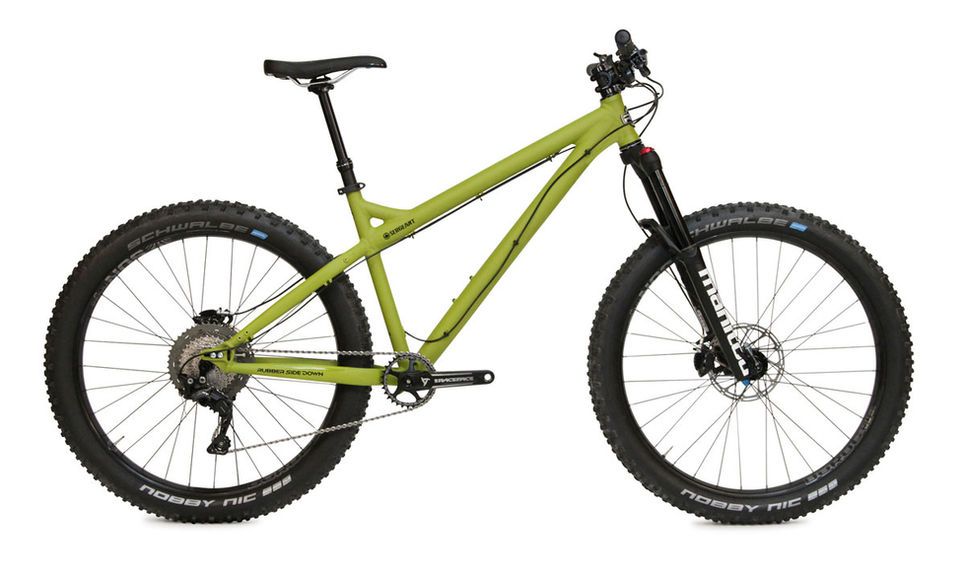

SERGEANT V3 Aluminum

When you send a bike out into the wide world, you have a clear notion of its purpose – where and how it can be ridden. But ultimately, the riders who buy them determine this, and we’ve learned some important things about the Sergeant from our customers. This has helped to steer the development of the newest version of this Swiss-Army-knife of a trail bike.

While it’s hard to deny the allure of many perfect niche bikes for every setting, most people can’t justify the outlay (or shed space!) It seems that for many riders, the best hardtail mountain bike is one that’s versatile enough to be used for multiple duties. That’s why the new Sergeant has become our ultimate do-it-all, anywhere bike.

It will come stock as a 27.5×3” plus bike, with the capability to run multiple wheel/tire combos – 29×3 or even 27.5×4.0 on a standard 83mm BB. And it’s also fully rack-mount ready, for riders who want to dabble in some bikepacking but would rather eschew a full-on fat bike or gravel bike to do so.

  • Frame: 27.5+/29 Aluminum 6061
  • Fork: Manitou Mattoc 27.5+/29 140mm Comp
  • Headset: Cane Creek ZS-44
  • Handle Bar: Race Face 35mm Turbine R 780mm
  • Stem: Race Face 35mm Aeffect 50mm
  • Grips: Lizard Skin Northshore
  • Front Wheel: Sun Ringle Duroc 27.5x50mm Front 15x110mm Boost
  • Rear Wheel: Sun Ringle Duroc 27.5x50mm Rear 12x157mm Super Boost
  • Crank: Race Face 175mm Cinch 149mm DM
  • Chain Ring: Race Face 30T NW Ring
  • BB: Race Face 83mm BSA
  • Chain: KMC X11SL
  • Cassette: Shimano XT 11/46T 11spd
  • Rear Shifter: Shimano SLX 11spd
  • Rear Derailleur: Shimano SLX 11spd
  • Brakes: Shimano SLX 2 Pistons
  • Rotors: Shimano SLX 180mm
  • Saddle: WTB Volt Comp
  • Seat Post: Race Face Turbine / KS Lev Dropper
  • Rear Axle: SRAM 188mm Rear Maxle Ultimate 12x157mm
  • Tires: Schwalbe Nobby Nic 27.5 x 3.0 Addix Evolution Speedgrip

Frame Weight (M): 5 Lbs 8 oz
Frame Weight (L): 5 Lbs 12 oz
Complete Weight (M):  29 Lbs 14 oz (Tubeless with Dropper)

Sizes: Sm, Med, Lrg & XL

Finish: Matte Green

Pricing:
Complete: $2499.00 CAD / $1999.00 USD
Complete w/Dropper : $2749.00 CAD / $2199.00 USD
Frame Only: $599.00 CAD / $499.00 USD + Shipping

Included with the Frame Only option:
Cane Creek ZS-44 Headset for tapered steerer tube
Rear 12x157mm Sliding Drop-out Inserts
SRAM 188mm Rear Maxle Ultimate 12x157mm
Seat post clamp

All prices listed are Minimum Suggested Retail

Frame: 27.5+/29 Aluminum 6061
Fork: RSD 510mm Aluminum Fork
Headset: Cane Creek ZS-44
Handle Bar: Race Face 35mm Turbine R 780mm
Stem: Race Face 35mm Aeffect 50mm
Grips: Lizard Skin Northshore
Front Wheel: Sun Ringle Duroc 27.5x50mm Front 15x110mm Boost
Rear Wheel: Sun Ringle Duroc 27.5x50mm Rear 12x157mm Super Boost
Crank: Race Face 175mm Cinch 149mm DM
Chain Ring: Race Face 30T NW Ring
BB: Race Face 83mm BSA
Chain: KMC X11SL
Cassette: Shimano XT 11/46T 11spd
Rear Shifter: Shimano SLX 11spd
Rear Derailleur: Shimano SLX 11spd
Brakes: Shimano SLX 2 Pistons
Rotors: Shimano SLX 180mm
Saddle: WTB Volt Comp
Seat Post: Race Face Turbine / KS Lev Dropper
Rear Axle: SRAM 188mm Rear Maxle Ultimate 12x157mm
Tires: Terrene Cake Eater 27.5×4.0 – Currently Out of Stock – Shipping with Schwalbe Nobby Nic 27.5×3.0

Frame Weight (M): 5 Lbs 8 oz
Frame Weight (L): 5 Lbs 12 oz
Complete Weight (M):  28 Lbs 12 oz (Tubeless with Dropper)

Sizes: Sm, Med, Lrg & XL

Finish: Matte Green

Pricing:
Complete: $2199.00 CAD / $1699.00 USD
Complete w/Dropper: $2449.00 CAD / $1899.00 USD
Frame Only: $599.00 CAD / $499.00 USD + Shipping
Frame with Fork Combo: $849.00 CAD / $699.00 USD
Fork Only: $299.00 CAD / $249.00 USD

Included with the Frame Only option:
Cane Creek ZS-44 Headset for tapered steerer tube
Rear 12x157mm Sliding Drop-out Inserts
SRAM 188mm Rear Maxle Ultimate 12x157mm
Seat post clamp

All prices listed are Minimum Suggested Retail

Frame Specs

  • Handmade Frame:  27.5+/29 Aluminum 6061 Double Butted and Heat Treated
  • CNC Machined Drop-Out: 7000 Series Aluminum
  • CNC Machined Head Tube: 44mm
  • CNC Machined Bottom Bracket Shell: 83mm BSA
  • CNC Machined Sliding Inserts: 7000 Series Aluminum – 12mm Maxle and IS Disc Mount
  • ISCG 05
  • Hardware: Stainless Steel
  • Fork Length: 550mm (140mm)
  • Rear Spacing: 157mm
  • Seat Post Clamp: 34.9mm
  • Seat Post: 30.9mm
  • Max Tire Size: 27.5x4in or 29x3in (Both on 50mm Rims)
  • Max Fork Length: 560mm Axle to Crown (150mm Travel)
  • Torques Specs for 4 Drop-Out Bolts: 17N/m to 20N/m
Size Chart
Diagram
Geometry — Metric
Geometry — Imperial
