CATALYST Titanium
A catalyst is defined as an agent for change. This bike will live up to its name by transforming the ride from a brisk road excursion to an all-out assault on gravel and dirt tracks, then back again.
The progressive geometry and design layout of this All-Road steed will guarantee that the road unfolds differently, and the path changes, each time out.
The Catalyst’s premium-quality frame construction and purposeful build, plus the ability to run tires up to 2.25” wide, will produce the right chemistry for your next great adventure on two wheels.
Add it up (we’ve done the math for you).
- Frame: 700c Titanium
- Fork: 400mm Full Carbon
- Headset: FSA Orbit ITA 44mm
- Handle Bar: Easton EA50 Road Drop Bars
- Stem: Easton 100mm EA50 Road
- Grips: Lock-on Black
- Front Wheel: KT-XA2F Hub QR Black – Sun Ringle Helix 25mm
- Rear Wheel: KTXA2R Hub QR Black – Sun Ringle Helix 25mm
- Crank: FSA Gossamer MegaExo 175mm
- Chain Ring: 40T Narrow Wide w/bash
- BB: FSA 68mm BSA
- Chain: KMC X10L-CP
- Cassette: SRAM PG-1020 11/36T 10spd
- Rear Shifter: SRAM X5 10spd
- Rear Derailleur: SRAM X7 Type 2 10spd
- Brakes: Avid BB7 Road Grey w/FR5 Lever
- Rotors: Avid 160mm CenterLine
- Saddle: WTB Volt Sport
- Seat Post: Easton EA50
- Rear Axle: QR
- Tires: Maxxis Overdrive 700x45c 60tpi
Frame Weight (M): 3 Lbs 03 oz
Sizes: Sm, Med, Lrg & XL
Finish: Brushed
Pricing:
Complete: $2699.00 CAD / $2299.00 USD
Frame Only: $1799.00 CAD / $1599.00 USD
Included with the Frame Only option:
Seat Post Clamp
All prices listed are Minimum Suggested Retail
Frame Specs
- Frame: 700c Titanium
- Head Tube: 44mm
- Fork Length: 400mm
- Bottom Bracket: 68mm BSA
- Drop-Out: 10x135mm QR
- Rear Spacing: 135mm
- Seat Post Clamp: 29.8mm
- Seat Post: 27.2mm
- Max Tire Size: 2.25in
- Max Fork Length: N/A

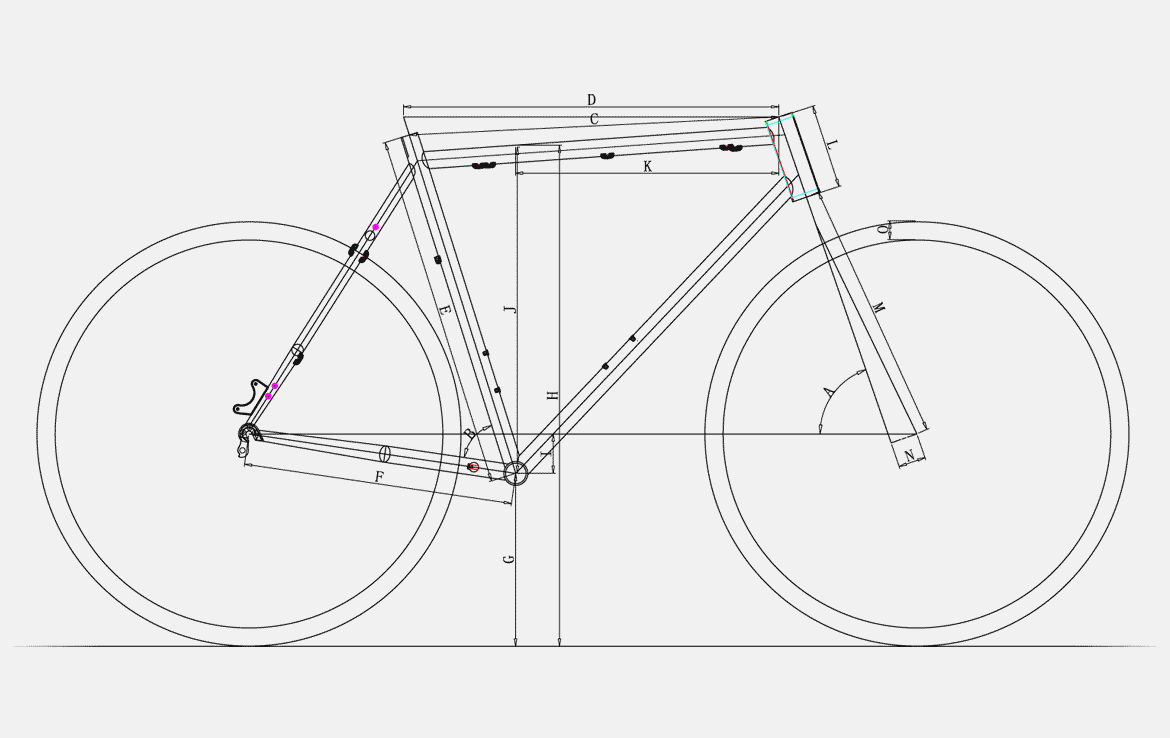

| Catalyst | Spec | Small | Medium | Large | XL |
| HT Angle | A | 71° | 71° | 71° | 71° |
| ST Angle | B | 72.5° | 72.5° | 72.5° | 72.5° |
| Actual TT | C | 545 | 565 | 585 | 605 |
| Effective TT | D | 559 | 575 | 589 | 612 |
| Seat Tube | E | 565 | 585 | 605 | 605 |
| Chainstay | F | 445 | 445 | 445 | 445 |
| BB Height | G | 285 | 285 | 285 | 285 |
| Standover Height | H | 816 | 827 | 840 | 840 |
| BB Drop (mm) | I | -65 | -65 | -65 | -65 |
| Stack | J | 529 | 542 | 555 | 555 |
| Reach | K | 374 | 389 | 404 | 415 |
| Head Tube (mm) | L | 140 | 140 | 140 | 140 |
| Fork length (mm) | M | 400 | 400 | 400 | 400 |
| Fork Offset (mm) | N | 46 | 46 | 46 | 46 |
| Tire Size (in) | O | 2.00 | 2.00 | 2.00 | 2.0 |
| Rider (cm) | 172.5 - 182.5 | 180 - 190 |
| Catalyst | Spec | Small | Medium | Large | XL |
| HT Angle | A | 71° | 71° | 71° | 71° |
| ST Angle | B | 72.5° | 72.5° | 72.5° | 72.5° |
| Actual TT | C | 21.46 | 22.24 | 23.03 | 23,82 |
| Effective TT | D | 22.01 | 22.64 | 23.19 | 24.09 |
| Seat Tube | E | 22.24 | 23.03 | 23.82 | 23.82 |
| Chainstay | F | 17.52 | 17.52 | 17.52 | 17.52 |
| BB Height | G | 11.22 | 11.22 | 11.22 | 11.22 |
| Standover Height | H | 32.1 | 32.56 | 33.07 | 33.07 |
| BB Drop (mm) | I | -65 | -65 | -65 | -65 |
| Stack | J | 20.83 | 21.34 | 21.85 | 21.85 |
| Reach | K | 14.72 | 15.31 | 15.91 | 16.34 |
| Head Tube (mm) | L | 140 | 140 | 140 | 140 |
| Fork length (mm) | M | 400 | 400 | 400 | 400 |
| Fork Offset (mm) | N | 46 | 46 | 46 | 46 |
| Tire Size (in) | O | 2 | 2 | 2 | 2 |
| Rider (ft/in) | 5'8 - 6' | 5'11 - 6'3 |
