CATALYST Chromoly

A catalyst is defined as an agent for change. This bike will live up to its name by transforming the ride from a brisk road excursion to an all-out assault on gravel and dirt tracks, then back again.

The progressive geometry and design layout of this All-Road steed will guarantee that the road unfolds differently, and the path changes, each time out.

The Catalyst’s premium-quality frame construction and purposeful build, plus the ability to run tires up to 2.0” wide, will produce the right chemistry for your next great adventure on two wheels.

Add it up (we’ve done the math for you).

Build Kit
Specs & Geometry

Frame: 700c DB Cr-Mo 4130 Heat Treated
Fork: 400mm Carbon w/Alu Steer Tube
Headset: FSA Orbit ITA 44mm
Handle Bar: FSA HB-CT-308-OS
Stem: Easton 100mm EA50
Grips: Lock-on Black
Front Wheel: KT-XA2F Hub QR Black – Sun Ringle Helix 25mm
Rear Wheel: KT-XA2R Hub QR Black – Sun Ringle Helix 25mm
Crank: FSA Gossamer MegaExo 175mm
Chain Ring: 40T w/bash
BB: FSA 68mm BSA
Chain: KMC X10L-CP
Cassette: SRAM PG-1020 11/36T 10spd
Rear Shifter: SRAM X5 10spd
Rear Derailleur: SRAM X7 Type 2 10spd
Brakes: Avid BB7 Grey w/FR5 Lever
Rotors: Avid 160mm CenterLine
Saddle: WTB Volt Sport
Seat Post: Easton EA50
Rear Axle: QR
Tires: Maxxis Overdrive 700x45c 60tpi

Frame Weight (M): 5 Lbs 03 oz

Sizes: Med, & Lrg

Finish: Dark Green

Pricing:
Complete: $1199.00 CAD / $999.00 USD
Frame Only: $499.00 CAD / $449.00 USD

Included with the Frame Only option:

Seat post clamp

All prices listed are Minimum Suggested Retail

Frame Specs

Frame: 700c DB Cr-Mo 4130 Heat Treated
Head Tube: 44mm
Fork Length: 400mm
Bottom Bracket: 68mm BSA
Drop-Out: Quick Release
Rear Spacing: 135mm
Seat Post Clamp: 29.8mm
Seat Post: 27.2mm
Max Tire Size: 2.3in
Max Fork Length: N/A

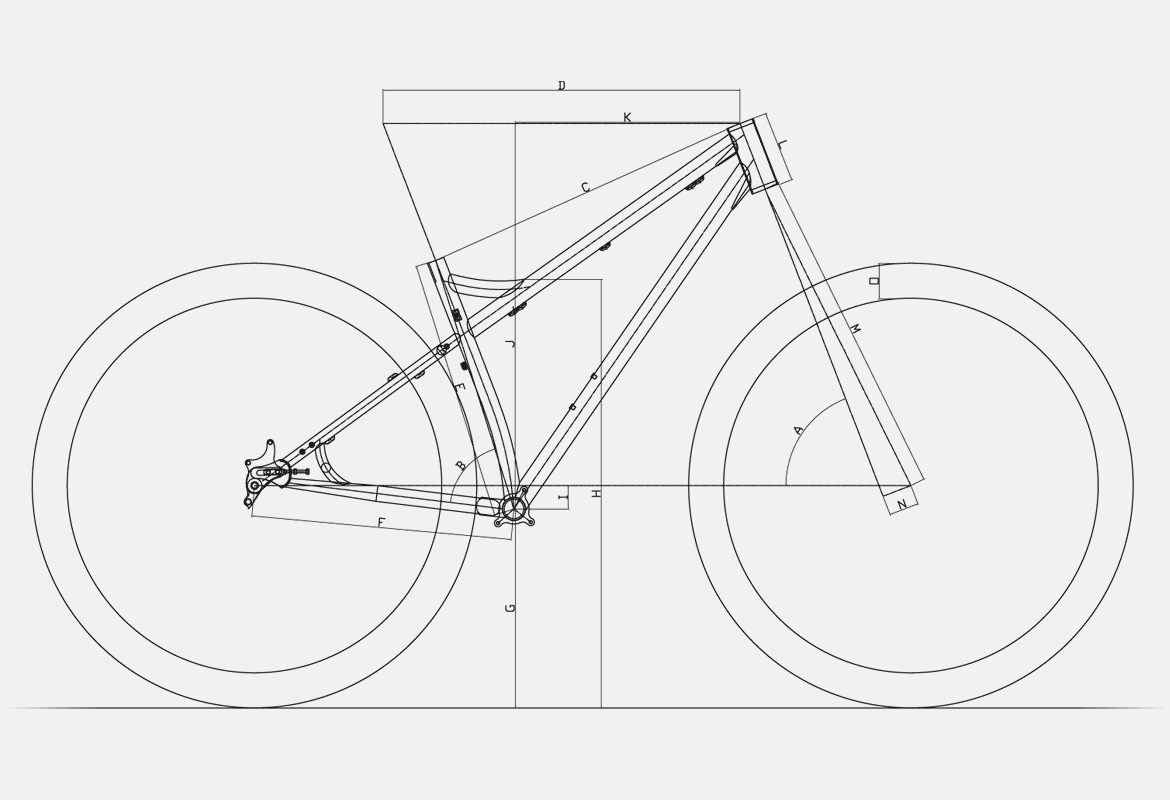

Diagram

Geometry — Metric

Edit
Catalyst	Spec	Small	Medium	Large	XL
HT Angle	A	N/A	71°	71°	N/A
ST Angle	B	N/A	72.5°	72.5°	N/A
Actual TT	C	N/A	585	614	N/A
Effective TT	D	N/A	595	619	N/A
Seat Tube	E	N/A	585	605	N/A
Chainstay	F	N/A	445	445	N/A
BB Height	G	N/A	285	285	N/A
Standover Height	H	N/A	827	840	N/A
BB Drop (mm)	I	N/A	-65	-65	N/A
Stack	J	N/A	588	588	N/A
Reach	K	N/A	410	434	N/A
Head Tube (mm)	L	N/A	140	140	N/A
Fork length (mm)	M	N/A	400	400	N/A
Fork Offset (mm)	N	N/A	46	46	N/A
Tire Size (in)	O	N/A	2.00	2.00	N/A
Rider (cm)			172.5 - 182.5	180 - 190

Geometry — Imperial

Edit
Catalyst	Spec	Small	Medium	Large	XL
HT Angle	A	N/A	71°	71°	N/A
ST Angle	B	N/A	72.5°	72.5°	N/A
Actual TT	C	N/A	23.03	24.17	N/A
Effective TT	D	N/A	23.43	24.37	N/A
Seat Tube	E	N/A	23.03	23.82	N/A
Chainstay	F	N/A	17.52	17.52	N/A
BB Height	G	N/A	11.22	11.22	N/A
Standover Height	H	N/A	32.56	33.07	N/A
BB Drop (mm)	I	N/A	-65	-65	N/A
Stack	J	N/A	23.15	23.15	N/A
Reach	K	N/A	16.14	17.09	N/A
Head Tube (mm)	L	N/A	140	140	N/A
Fork length (mm)	M	N/A	400	400	N/A
Fork Offset (mm)	N	N/A	46	46	N/A
Tire Size (in)	O	N/A	2	2	N/A
Rider (ft/in)			5'8 - 6'	5'11 - 6'3
